Not Rebuilt 2387cc Turnkey VW Engine 220HP

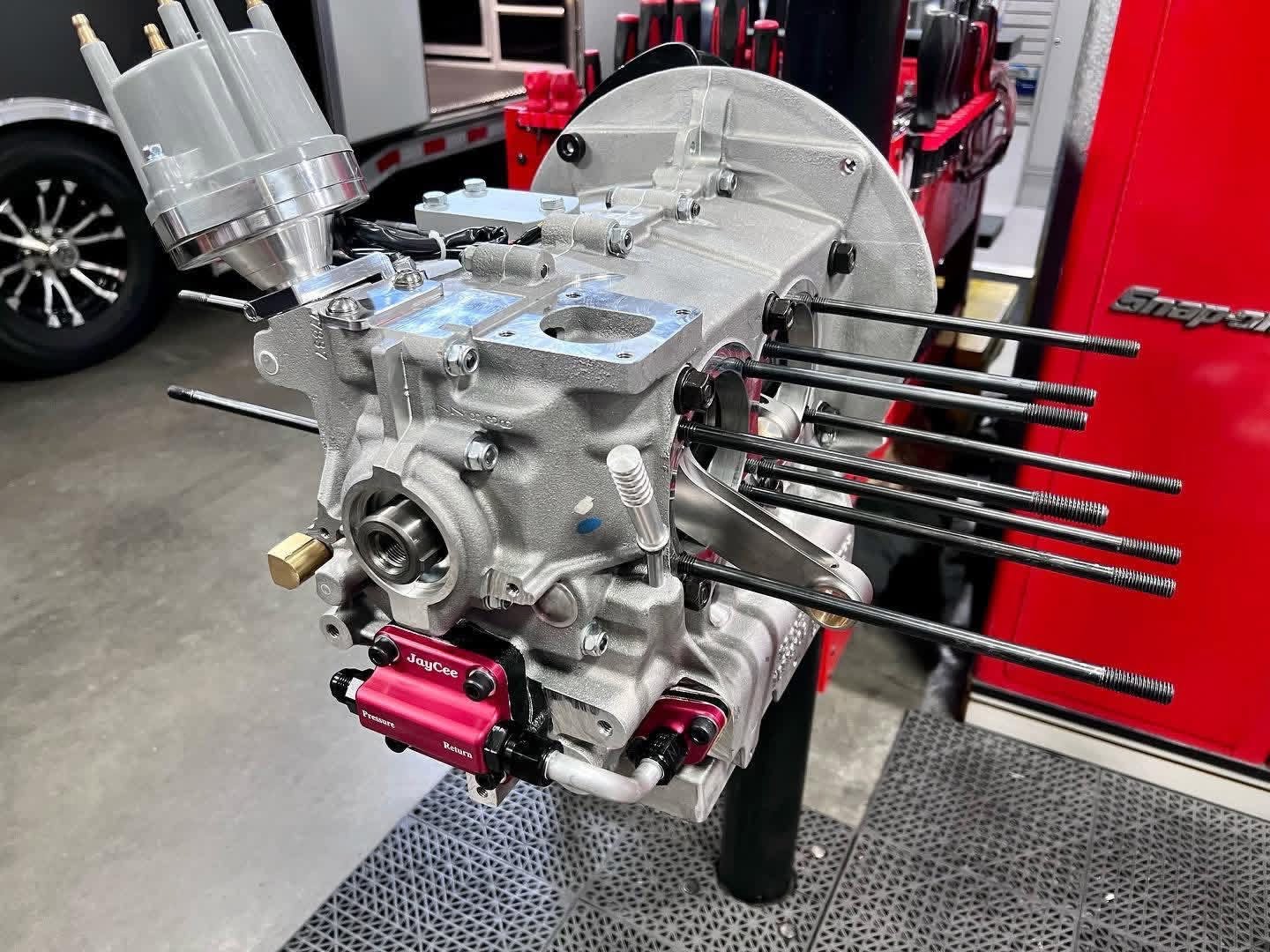

Engine Case

• New AutoLinea aluminum Super Case
• Full-flow oil system
• Shuffle-pinned center main
• Clearanced for 86 mm stroker crank
• Thrust-cut and decked
• Case savers installed
• Dynamic balancing

Crankshaft

• 86 mm forged 4340 chromoly stroker crank
• Counterweighted
• 8-dowel flywheel mounting
• Nitrided journals
• Precision balanced

Connecting Rods

• Forged H-beam rods
• Chevy journal
• ARP 2000 rod bolts
• Fully balanced

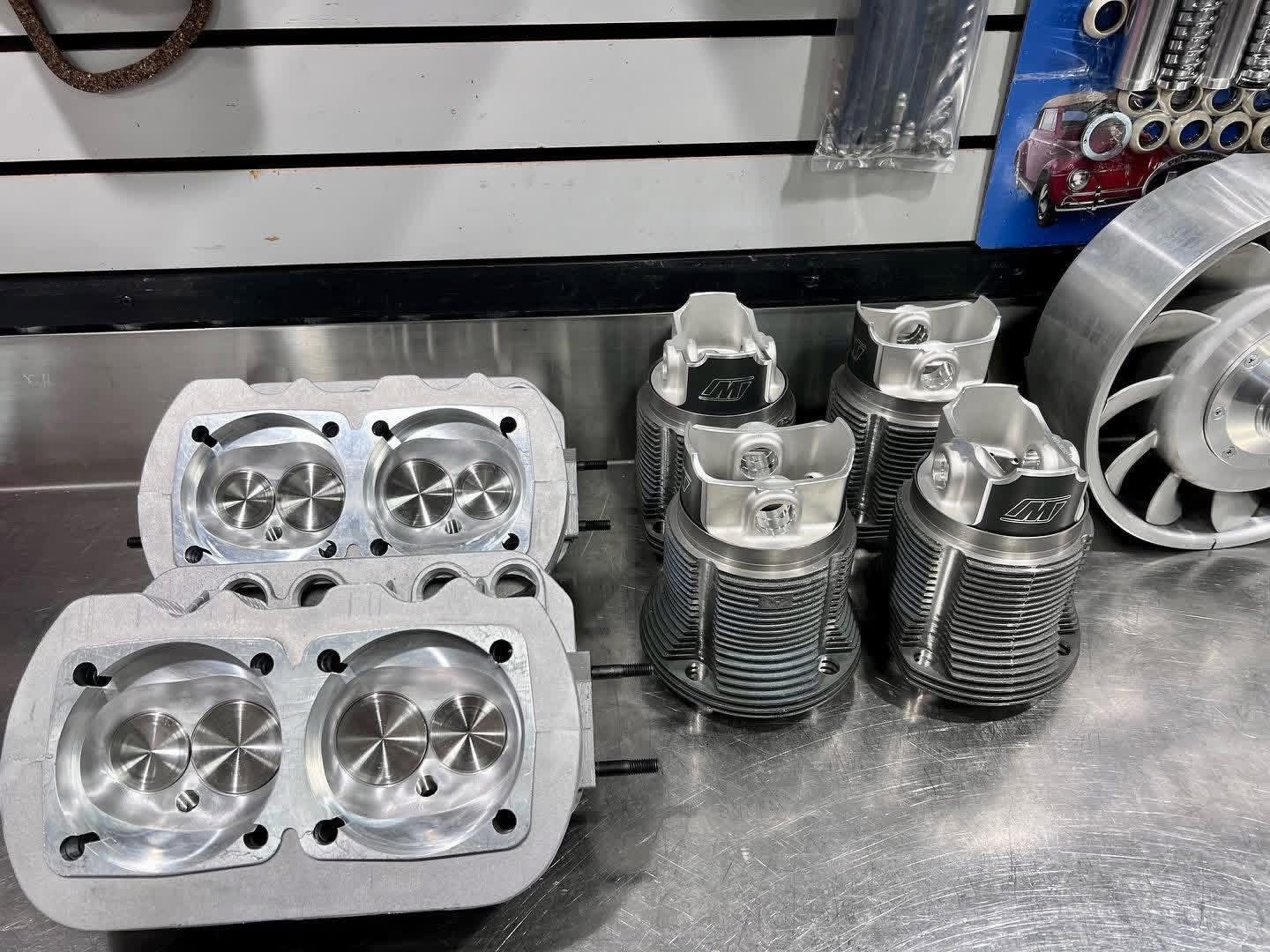

Pistons & Cylinders

• AA Performance or Mahle forged pistons
• 94 mm forged pistons
• Performance piston rings
• Forged wrist pins

Camshaft

Common choices include:

• Engle FK-89
• Engle FK-87
• WebCam 86C
• Custom performance cam

Usually paired with:

• Straight-cut cam gears
• Lightweight racing lifters

Cylinder Heads

High-flow CNC-ported heads featuring:

• 44 x 37.5 mm stainless valves (street)
• 46 x 37.5 mm valves (high-output builds)
• CNC intake and exhaust ports
• Dual high-pressure valve springs
• Chromoly retainers
• Bronze valve guides
• Competition valve job

Valve Train

• Chromoly pushrods
• Forged 1.4:1 rocker arms
• Solid rocker shafts
• Swivel-foot adjusters
• HD rocker studs

Lubrication

• 30 mm high-volume oil pump
• Full-flow oil filtration
• External spin-on filter
• External oil cooler with thermostat (common)
• Deep sump (1.5–3.5 qt)
• Oil pressure sender

Cooling System

• Doghouse fan shroud
• Welded cooling fan
• Complete cooling tin
• High-capacity oil cooler
• Cylinder deflectors
• Thermostat provision (optional)

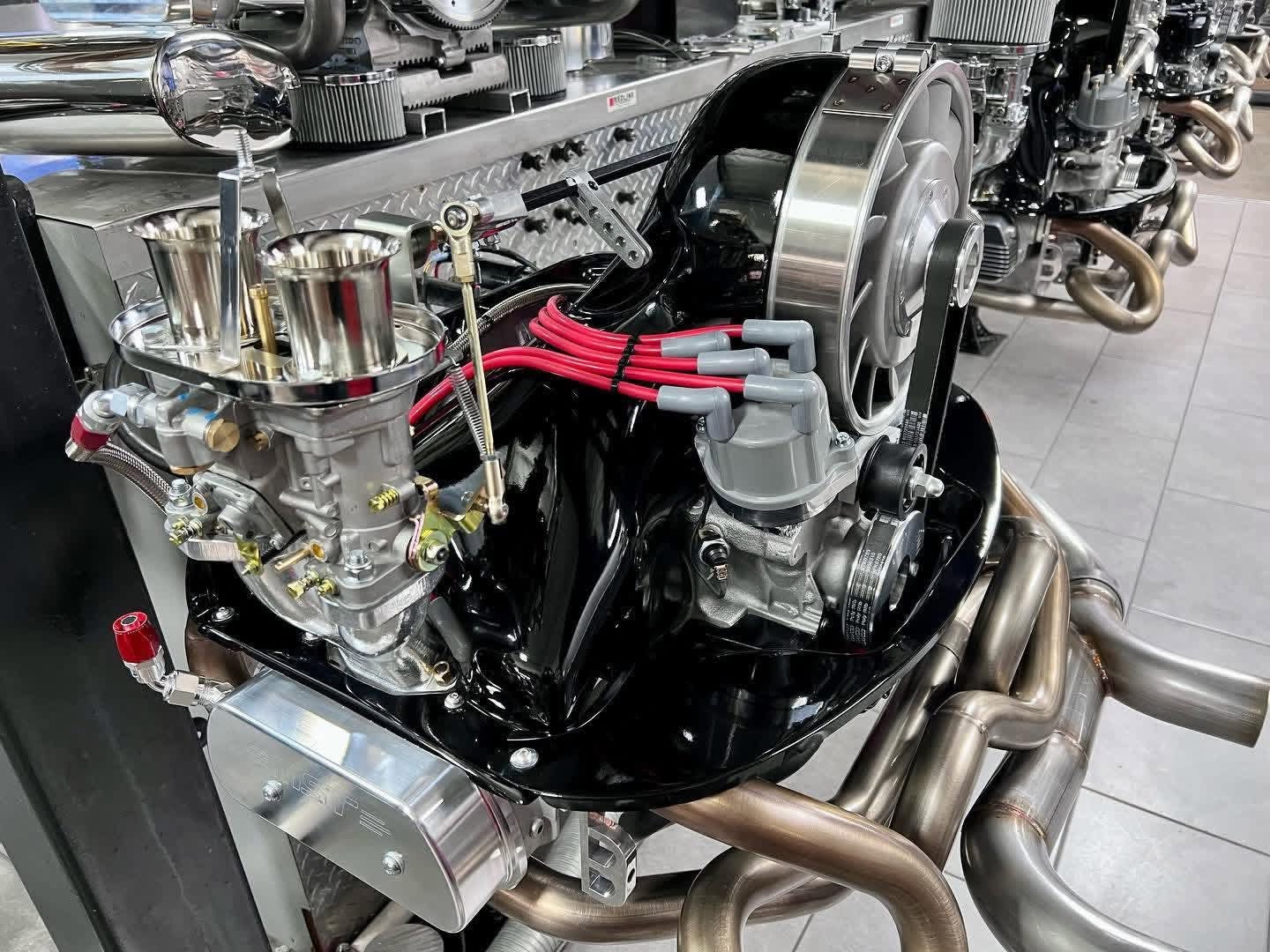

Fuel System

Typical configurations:

• Dual Weber 48 IDA
• Dual Weber 48 IDF
• Dual EMPI HPMX 48
• Match-ported intake manifolds
• Performance linkage
• Large-flow air cleaners

Many premium engines use 48 IDA carburetors for maximum airflow.

Ignition

• HEI electronic distributor or CB Magnaspark
• Electronic ignition module
• High-output coil
• 8 mm performance plug wires
• Performance spark plugs

Charging System

• 12-volt alternator
• 55-amp output
• Internal voltage regulator
• Billet alternator pulley

Flywheel

• Forged chromoly
• 200 mm
• Lightened
• 8-dowel
• Dynamically balanced

Clutch

Typical options:

• Kennedy Stage 1 (street)
• Kennedy Stage 2 (high-performance)
• Cush-Loc or Copperhead clutch disc

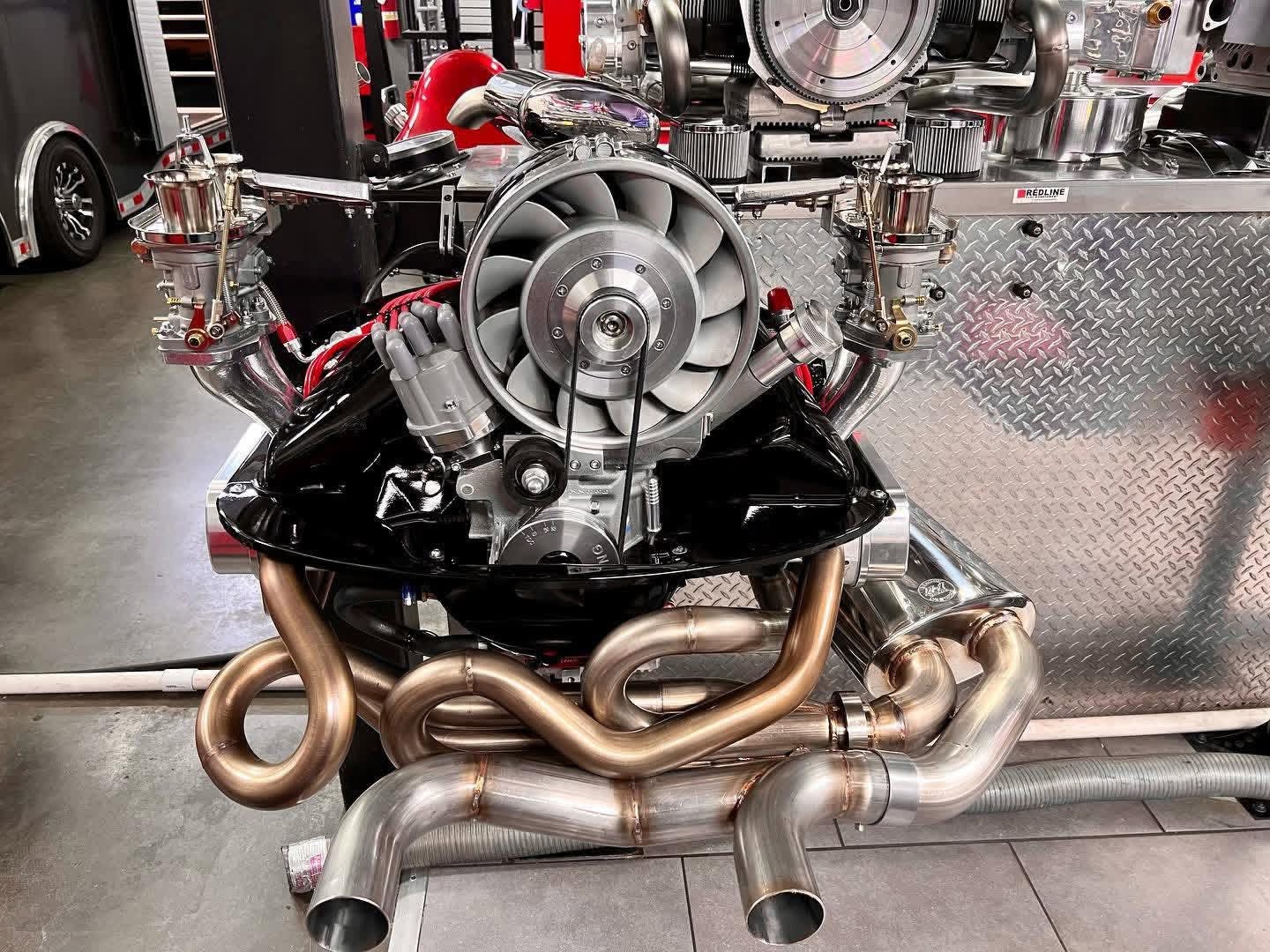

Exhaust

• A1 Sidewinder stainless exhaust
• 1⅝” to 1¾” merged header
• Performance muffler
• Stainless collector
