| Specification | Details |
|---|---|
| Engine Type | Volkswagen Type 1 Air-Cooled Flat-4 |
| Configuration | Horizontally opposed 4-cylinder |
| Displacement | 2276 cc |
| Bore | 94.0 mm |
| Stroke | 82.0 mm |
| Bore × Stroke | 94 × 82 mm |
| Cooling System | Air-cooled, Doghouse cooling |
| Aspiration | Naturally aspirated |
| Engine Case | Aluminum Type 1 performance engine case |
| Crankshaft | Forged 82 mm counterweighted stroker crankshaft |
| Connecting Rods | Forged performance rods |
| Pistons & Cylinders | Forged 94 mm piston and cylinder set |
| Cylinder Heads | Street Performance dual-port heads |
| Camshaft | Performance street camshaft (grind not published) |
| Lifters | Performance matched lifters |
| Fuel System | Dual 40 mm Kadron or Dual 40/44 HPMX carburetors |
| Ignition | HEI electronic ignition |
| Charging System | Alternator |
| Cooling Tin | Doghouse cooling tin |
| Exhaust | A1 Sidewinder stainless-steel exhaust with turndown muffler |
| Flywheel | 12-volt performance flywheel |
| Fuel | Premium unleaded gasoline recommended |
| Assembly | Professionally assembled, cam broken in, tuned, and test-run |
| Condition | 100% new components |
| Installation | Complete turnkey engine, ready to install |

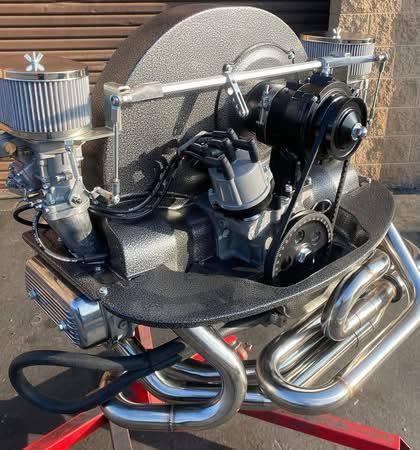

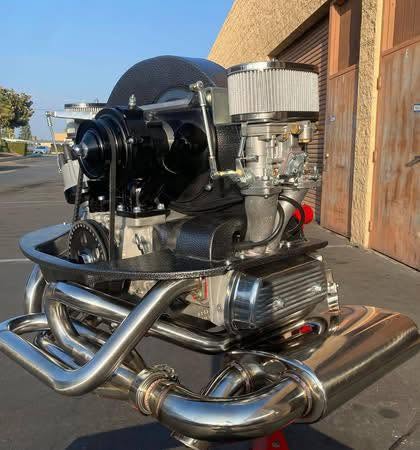

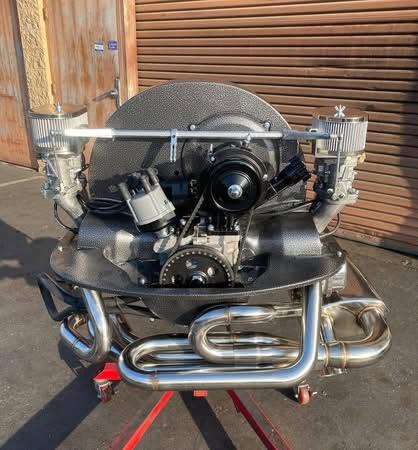

Rebuild 2276cc Volkswagen Turnkey VW Engine
$4,800.00
82mm crank, 5.400 H beam rods, stright cut gears, scat 1.4 rockers, D ported heads 42X37.5 valves, CB magna spark distributor, powder coated sheet metal, SS side flow exhaust system, stage 1 clutch kit.
Description
Reviews (0)
Related products
Not Rebuilt 2332cc Turn Key Engine 160hp 2026
Full specification can be built to suit your vehicle and usage.
160hp
Comes with the following performance parts:
Performance camshaft
48 Twin weber carbs
Choice of breather tower or breather box.
Deep Sump
Autolinea Super Case, shuffle pinned and full flowed
Bolt on rocker covers
Forged 84mm crank
H Beam connecting rods
Heavy duty Chromoley pushrods
Racing Gland nut
Performance forged 94mm Cylinder heads
Forged ratio rockers
Chromoley 200mm Flywheel
Top quality Distributor
Silicone HT Leads/coil
Tinware powder coated to customer choice
Full spec list available
Crank assembly dynamically balanced
1 year warranty
Rebuild 1915cc Volkswagen Turnkey VW Engine
Engine Case
- New AutoLinea or AS41 magnesium/aluminum case
- Dual oil pressure relief
- Full-flow oil passages
- Shuffle-pinned and align-bored as required
- Case savers installed
Crankshaft
- Forged 69 mm counterweighted crankshaft
- Dynamically balanced
- 8-dowel flywheel connection
- Heavy-duty chromoly gland nut
Connecting Rods
- Forged I-beam rods
- Balanced set
- ARP-style rod bolts (builder dependent)
Pistons & Cylinders
- 94 mm forged or hypereutectic pistons
- 94 mm thick-wall cylinders
- Three-ring piston design
- Balanced rotating assembly
Camshaft
Common choices include:
- Engle W110
- Engle W120
- CB Performance cams
These provide a strong mid-range powerband for street driving.
Cylinder Heads
- AutoLinea or performance dual-port heads
- CNC three-angle valve job
- 40 x 35.5 mm valves (common street setup)
- Dual valve springs
- Chromoly retainers
Valve Train
- Chromoly pushrods
- Solid rocker shafts
- HD rocker arms
- Heavy-duty lifters
Lubrication
- High-volume Schadek oil pump
- Stock or deep oil sump
- External oil filter (many builders)
- Oil capacity: approximately 2.5–3.5 quarts depending on sump configuration
Cooling
- Doghouse fan shroud
- Offset oil cooler
- Wide cooling fan
- Complete cooling tin
- Thermostat provisions (builder dependent)
Fuel System
- Dual Weber 40 IDF, EMPI HPMX 40, or Dellorto DRLA 40 carburetors
- Cross-bar linkage
- Performance intake manifolds
- High-flow air cleaners
Ignition
- Electronic distributor
- Electronic ignition module
- High-output ignition coil
- 8 mm performance plug wires
- NGK or Bosch spark plugs
- 130 Horse Power
